Technical Standard

All the Eaglestar fuel dispenser machine are designed and produced with application to GB/T 9081-2008 Fuel dispenser standard for vehicle and JJG 443-2015 Fuel dispenser calibration regulations and （OIML）R117 and R118.

Standard Configuration

EG1 series fuel dispenser machine Basic models and standard features:

● 1 hose 1 product, 2 hoses 1 product and 2 hoses 2 products.

● Standard duty: 50 liters per min.

● Vane pump and 4-piston flow meter

● 775 LCD display

● Sight glass

● Single phase ex motor

Optional Features:

● Heavy duty: 70-80 liters per min

● 3 phase motor

● Built in Printer for receipt

● Gear pump

● LED display for advertisement on canopy

● Emergency button stop

● Non resettable electromagnetic totalizer.

● Hose holder

● Double swivel

● Breakaway couplings

● External reusable filter

● RS-485 and current loop for POS communication

● Submersible type

● Customized LOGO painting on front panel

Models:

Technical Parameters:

● Accuracy：±0.25%

● Flow Rate：Standard Duty (5~50)L/Min, Heavy Duty (7~70)L/Min.

● Digits For Sales : 7 Digits

● Digits Of Volume : 7 Digits

● Digits Of Unit Price : 5 Digits

● Mechanical Totaliser : 7 Digits

● Electronic Totaliser : 10 Digitis

● Noise：≤70db(A)

● Application Products：Gasoline, Diesel And Kerosene

● Motor：Ac380V Or 220V 50Hz (+10%, -15%) Explosion Proof, Continuous Duty With Over Load Protection

● Temperature：-25°C ~ 55°C

● Humanity：≤95%

● Ex Mark：Ex d Ib Mb Iia T3 Gb

● Ex Approval：Cnex16.1148

● Measurement Approval：Yuzhi 00000374

Packing, Storage, Handling and Transportation

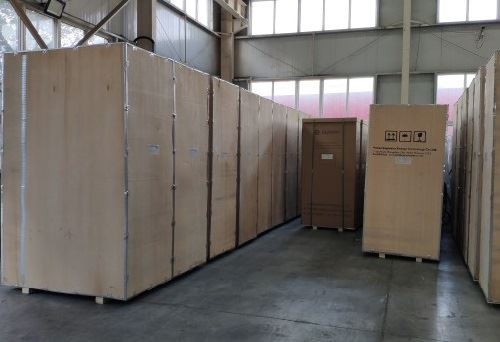

Wooden Package or Carton Package for EG1 series fuel dispenser machine

24 units for 20 foot container, 48 units for 40 foot container.
